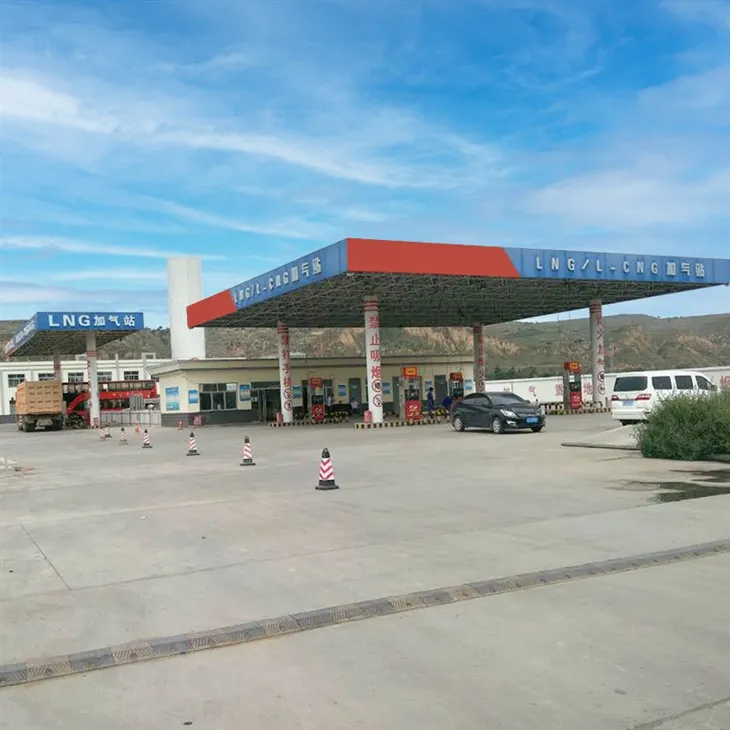

Compact LNG Refueling Station
Compact LNG stations are modular energy infrastructures designed for space-constrained, rapid deployment scenarios. With a footprint more than 50% smaller than that of traditional stationary stations, they support a wide range of applications, including road transport, harbors, mining sites, and urban public transport hubs.
Their core advantages include a lightweight design, quick installation, and a low operational threshold, making them especially suitable for small to medium gas demands or as complementary nodes in large-scale energy networks.
Core Components and Technical Parameters
1. Cryogenic LNG Storage Tank
Volume: 30,50,60 m³ (optional vacuum insulation or polyurethane insulation technology)
Working Pressure: 0.6–1.2 MPa (adaptable to different regional gas supply standards)
Key Components:
Stainless Steel Inner Tank: Made of S30408 material, offering 3× improved corrosion resistance
Double-Layer Vacuum Insulation: Thermal conductivity ≤ 0.002 W/m·K; daily evaporation rate ≤ 0.15%
Intelligent Liquid Level Sensor: Accuracy ±1 mm; integrated with a remote monitoring interface
2. Cryogenic Pump Skid
Pump Type: Vertical cryogenic centrifugal pump (flow rate: 5–50 m³/h) or submerged liquid pump (20% higher efficiency)
Motor: Explosion-proof inverter motor (IP68 rated; suitable for environments from -40°C to 50°C)
Control Module:
Integrated automatic pressure regulation
Anti-cavitation protection
Supports manual/automatic dual-mode control
3.LNG Dispenser
Measurement Accuracy: ±1.0% FS (compliant with OIML R137 international metrology standards)
Filling Speed: 3–80 kg/min (supports upgrade to LNG/CNG dual-fuel mode)
Interface Compatibility: ISO 20423 (Europe), AGA NGV1 (North America), and other global standards
4. Control System and Safety Devices
Main Control: PLC intelligent control cabinet (supports Modbus/TCP protocol; compatible with existing SCADA systems)
Safety Devices:
Emergency shut-off valve (response time < 1 second)
Laser gas leakage detector (detection accuracy: 0.1 ppm)
Explosion-proof acoustic and visual alarms (certified to ATEX/IECEx standards)
5. Modular Skid-Mounted Structure
Transport Dimensions: Standard 20 ft / 40 ft container (disassembly-free transport; reduces overseas logistics costs by 30%)
Integrated Design: Combines storage tank, pump skid, and control system; only pipeline connection and power commissioning are required on-site
Hot Tags: LNG Refueling Station (LNG Horizontal Storage Tank), China LNG Refueling Station (LNG Horizontal Storage Tank) manufacturers, CRYOGENIC SUBMERGED CENTRIFUGAL PUMP IMMERSED TYPE, Dual Gun LNG Dispenser, LNG Dispenser System, Lng Refuelling Station, Mobile LNG Dispenser, Skid Mounted LNG Refilling Station
Parameter Data
|
Parameter |
|
|
|
Working medium |
(LNG)Liquefied Natural Gas(LNG) |
|
|
Total volume of storagetank |
30m³ |
60m³ |
|
Heatinsulation of storagetan |
High vacuum twine |
High vacuum pearlife padding |
|
NO.ofpumps |
1unit |
2units |
|
Max.discharge of pump |
340L/min |
680L/min |
|
Operating pressure |
1.6Mpa |
1.6Mpa |
|
Measurin gaccuracy |
±1.0% |
±1.0% |
|
Pipeline design temperature |
-196℃ |
-196℃ |
|
Total power |
15~25KW |
30~45KW |
|
Noise |
≤55dB |
≤55dB |
|
Explosive-proofgrade |
IECEX,ATEX |
IECEX,ATEX |
|
Control mode |
PLC full automatic control |
PLC full automatic control |
